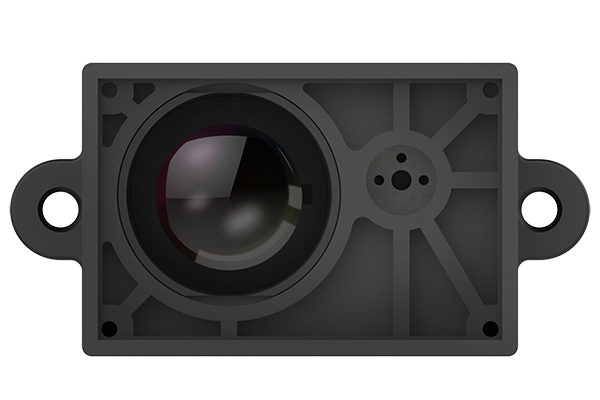

L10 小尺寸，高性价比，应用广泛
L10是适用于无人机，服务机器人和工业AGV等场合的新型激光雷达解决方案，它具有体积小，成本低，性能出色和抗环境光能力强等特点，因此可以被广泛使用在各种应用场景。
量程: 0.05-5m/0.05-10m；精度: 5%
速度: 100HZ；通讯: UART
抗环境光能力: 100K LUX
尺寸: 20*22*14mm
- 基于飞行时间算法
- 小尺寸；
- 高性价比；
- 广泛应用
- 量程：0.05 ~ 10m
- 精度 0.05-2m：±2cm；2-20m：5%
- 速度：100Hz
- 分辨率：1cm
- 抗环境光：100K LUX
- 波长：780nm
- 工作温度：-10~60℃
- 存储温度：-20~70℃
- 供电电压：3.5~5.5 VDC
- 功耗：≤80mA@5V
- 接口：UART
- 波特率：115200
- 通讯电平：TTL 3.3 VDC
- 协议：Customize
- 材质：ABS+PC
- 尺寸：20 * 22 * 14mm
- 重量：11g
Multiplex Fiberheads
The OptoMET Dual Fiber SWIR Vibrometer consists of a SWIR vibrometer and a flexible Dual-Fiber head. Using an additional fiber switch multiple fiber heads can be connected to the vibrometer, so you can multiplex many
different channels (2, 4, 8, 16, ...), the fiber switch comes with an electrical interface (Ethernet, USB, TTL, ...) and can be remotely operated by a PC.
Device Datasheet & Information about Laser Vibrometry
Accessories
Single Point Vibrometer Transport Case
Stable and waterproof Peli case for safe keeping and transport of vibrometer.
External dimension (L x B x H): 61.9 x 49.2 x 22.3 cm
Transport Bag
Compact und light transport bag for the outdoors-measurements
IR-Detector Card
Transforming the not-visible infrared light into a spot of visible light.
Mobile Battery
Portable battery charger, external battery power bank. For powering the vibrometer when performing outdoor measurements.
Tranport Case for Autofocus Fiber Head
Stable and waterproof transport case.
Tranport Case for Manual Focus Fiber Head
Stable and waterproof transport case.
Tripod with Fluid Head
Precisely align your vibrometer with high quality tripods by Manfrotto
Positioning Stage
Precisely align your Fiber measurement head.
